4 Responses to “rX Hashtag Command prompt”

1. Admin Says:
   June 18th, 2016 at 8:08 pm

   The command system from more advanced versions (inclusive of multi-language support) was not included in this re-write of the pending and future KitCAD i3 KGC rX release (for July 2016). After more testing, extra commands will be available for use {date of which is unknown} that should allow for complex functions to be achieved from end-user selection of the user entered hash fragment identifiers as Hashtag commands required to process for the required result.

2. Admin Says:
   July 9th, 2016 at 2:54 am

   Updated hashtag.html help file document {Online version only at this time; Inserted the following HTML:

   <!--// insert support for hashtag entry -->
   <div id="hashtagcommandentry">
   <br />
   <h3>Hashtag command entry</h3>
   <form action="#" method="GET" id="formHASH" name="formHASH"><div>#<input type="text" value="" id="textHASH" name="textHASH"/>
   <input type="button" value="Submit" id="textSUBMIT" name="textSUBMIT" onclick="setparentdocumentlocationhash();return false;"/>
   <br /></div></form>
   </div><script type="text/javascript">/*< ![CDATA[*/

   var parent_opener = parent.opener;var isrXrunning = false; var isrXrunning5 = false; var isrXrunning3 = false;

   /*default is parent.opener however if window.parent exists then use it, test with minimum of r3*/
   function help_hashtag_rX_version_test(){ var parent_openerx=false;
   try{if(window.parent.opener.r3){parent_openerx = window.parent.opener;}}catch(e){}
   try{if(window.parent.r3){parent_openerx = window.parent;}}catch(e){}
   try{if(window.top.opener.r3){parent_openerx = window.top.opener;}}catch(e){}
   try{if(window.top.r3){parent_openerx = window.top;}}catch(e){}
   try{if(parent.opener.r3){parent_openerx = parent.opener;}}catch(e){}
   try{if(parent_openerx){ parent_opener=parent_openerx;}}catch(e){}
   try{isrXrunning = parent_opener.rX;}catch(e){}
   try{isrXrunning5 = parent_opener.r5;}catch(e){}
   try{isrXrunning3 = parent_opener.r3;}catch(e){}
   try{if(isrXrunning_disable==true){isrXrunning=false;isrXrunning5=false;isrXrunning3=false;parent_opener=null;}}catch(e){}}
   help_hashtag_rX_version_test();

   /*hides form if no parent*/
   function rXparentdocumentlocationhashform(){try{
   if(isrXrunning==false && isrXrunning5 == false && isrXrunning3 == false){
   document.getElementById('hashtagcommandentry').style.display="none";
   document.getElementById('hashtagcommandentry').style.visibility="hidden";
   document.getElementById('hashtagcommandentry').style="display:none;visibility:hidden;";
   }}catch(e){}
   }
   rXparentdocumentlocationhashform();

   /*updates parent hash*/
   function setparentdocumentlocationhash(){try{
   if(document.getElementById('textHASH').value!='undefined'||document.getElementById('textHASH').value!=''){
   parent_opener.document.location.hash='#' + document.getElementById('textHASH').value; document.getElementById('textHASH').value='';
   }}catch(e){}
   } /*]]>*/</script>
   <!--// end of insert support for hashtag entry -->


   The HTML above allows end-users to enter hash-tag commands into a webpage form which when submitted will update the document hash location of the parent window.

3. Admin Says:
   July 9th, 2016 at 10:29 pm

   Updated _r5en.js Javascript file {Online version only at this time; Appended file with the following:

   /*show/hide hash input element on toolbar*/
   var rXhashbarSupport=true;var rXhashbarSupportSubmit='Apply'; var rXhashbarSupportEnabled=false; function rXhashbarHide(){try{if(rXhashbarSupport==true && rXhashbarSupportEnabled==true){findObj('textareaHASHdiv').remove();rXhashbarSupportEnabled=false;}}catch(e){}}
   function rXhashbarShow(){try{if(rXhashbarSupport==true && rXhashbarSupportEnabled==false){try{if(TEXTApply!=''||TEXTApply!='undefined'){rXhashbarSupportSubmit=TEXTApply;}}catch(e){}
   var sHASH=document.createElement('div');sHASH.setAttribute('style','position:relative;top:-17px;left:100px;');sHASH.setAttribute('class','textareaHASH'); sHASH.setAttribute('id','textareaHASHdiv');sHASH.innerHTML=' #<input id="rXToolbarHASH" name="rXToolbarHASH" type="text" value=""/><input type="submit" value="'+rXhashbarSupportSubmit+'" onclick="rXupdatehashtoolbar();return false;"/>';document.getElementById('ToolbarTitle_outer').appendChild(sHASH);rXhashbarSupportEnabled=true;}}catch(e){}}
   function rXupdatehashtoolbar(){try{if(rXhashbarSupport==true){document.location.hash="#"+document.getElementById('rXToolbarHASH').value;document.getElementById('rXToolbarHASH').value='';}}catch(e){}}
   function rXhashbarSupportInit(){try{setTimeout('rXhashbarShow()',8000);}catch(e){}}
   /*uncomment the following line to always show*/
   //rXhashbarSupportInit();

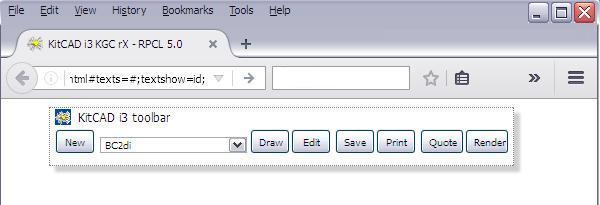

   To display the hashbar – within the KitCAD i3 toolbar element; use the JavaScript console command of rXhashbarShow() and rXhashbarHide() to hide.

4. Admin Says:
   July 10th, 2016 at 3:00 am

   Update to online version {16th July} of _r5se.js is as follows:

   Replace “all” text within the userkeppress function, as below:

   if(xkey==TEXThelpKey){splashAUXinit();}

   with:

   if(xkey==TEXThelpKey){if(document.getElementById('splash')){splashAUXclose();try{rXhashbarShow();document.getElementById('rXToolbarHASH').focus();}catch(e){}}else{splashAUXinit();try{try{document.getElementById('rXToolbarHASH').blur();rXhashbarHide();}catch(e){rXhashbarHide();}}catch(e){}}}
