KP2->i3KGC/KPX conversions

Sunday, March 9th, 2014

Started in March and finished in July the coding on KitCAD i3 KGC rX (r5se reusing r5) as a standalone webpage that is capable of creating, opening, saving, rendering, and reporting on a plan view drawing – {First Published at the end of October 2014 with minor updates in November}. (In English: it also runs in off-line modes and runs without continued internet connection – allowing full editing and saving of files with some minor changes to user interactions). All of the rX code testing has been performed with minor updates where required; Development log | List of updates; and Instructions.
The main new feature of the rX version is the ability to be a Standalone webpage with library in-page (If supported – no library/graphics loading is needed).

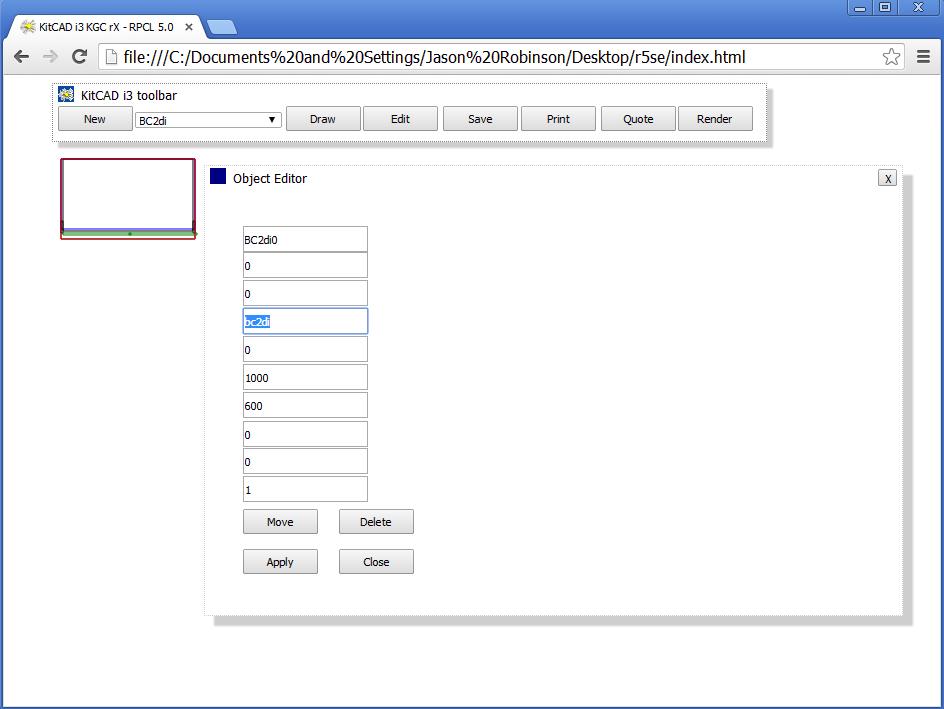

Image above was taken during final testing of the KPX decompression code within the KitCAD i3 KGC rX interface.

The KitCAD i3 KGC rX version is the same code as before – but now it will also have the following added features;
– Smaller in overall size
– Lesser amount of file/page downloads
– Supports KGC rX KPX (kpx example notice)
– Faster KGC load times – using KPX
– Run-time saving, rendering, and reporting pages
– Support for frameless Web Browsers
– Graphics included in-page using Web file catching mechanisms
– HTTP/S HTML5 Appcache, and other manifests supported.
Enhanced Keyboard support for KGC to be moved using the arrow keys
Navagation icons support for KGC to be moved using the displayed icons.
– Updated Web Browser security compared with previous KitCADi3ie5 versions.
– Administrator/User configurable Web page interfaces where supported.
– Web Browser Save Page as, Complete where supported.
– Render and Quote hypertext links, allowing printing where supported.
CNC cut up, nesting and support of advanced document operation/s.
– Compatible with previous versions (Object Editor) where supported.
– Address bar Hash fragment Hashtag command system.

Release notice:- KitCAD i3 KGC rX with KPX release notice.

Please note that the online/XAMPP r5 version is required to be installed before the online/XAMPP rX version can be installed; See KitCAD i3 KGC r5 release notice for more information.
